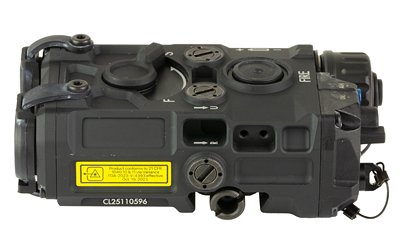

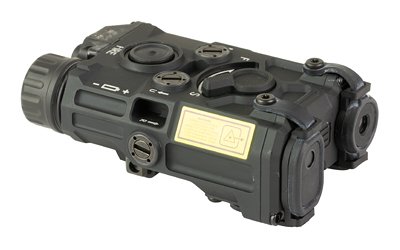

The OGL-C (On-Gun Laser, commercial power) combines a green visible aiming laser, a near-infrared aiming laser and a near-infrared illuminator in one housing.
Key features
- Green visible aiming laser
- Near-infrared aiming laser and adjustable spot-to-flood IR illuminator
- Stacked lasers with shared windage and elevation adjustment
- Raised tactile fire button: press for momentary, double tap for constant on
- Remote switch jack; Modlite ModButton Lite 7 in. switch included
- Runs on one CR123 battery
Specifications
- Manufacturer part number: EOT-OGL-C-B
- Color: Black
- Power: Commercial
- Visible aim laser: 515 nm green, up to 5.0 mW, Class 3R
- NIR aim laser: 850 nm, up to 0.67 mW, Class 3R
- NIR illuminator: 850 nm, up to 30 mW, Class 3R, spot ≥30 MRAD to flood ≥105 MRAD
- Beam divergence (aim lasers): under 0.5 MRAD
- Activation: Fire button on housing (momentary or double tap for constant on) or included Modlite ModButton Lite 7 in. remote switch
- Adjustment: ~0.2 MRAD per click, 50 MRAD total travel
- Battery: 1 x CR123
- Dimensions: 4.1 x 2.3 x 1.5 in. (102.9 x 58.2 x 37.8 mm)
- Weight: 8 oz (227 g)
- Mount: Crane-type laser port; designed for top-rail placement
Compatibility
Designed for top-rail mounting. Accepts industry standard remote pressure switches through its remote jack. The IR laser and illuminator are intended for use with night vision devices.
Genuine EOTech product, manufacturer part number EOT-OGL-C-B. New in the manufacturer’s packaging with full factory warranty. Usually ships within 1-2 business days.
